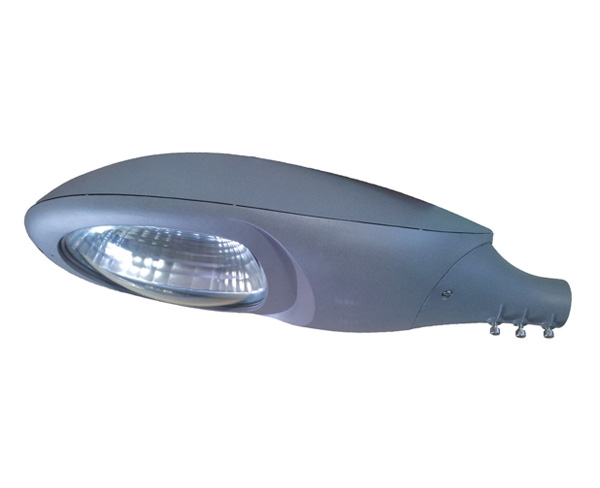

CDM Street light-Town Type

Content

Certified Products

Model Name G2B No
WR-RL701 22446476

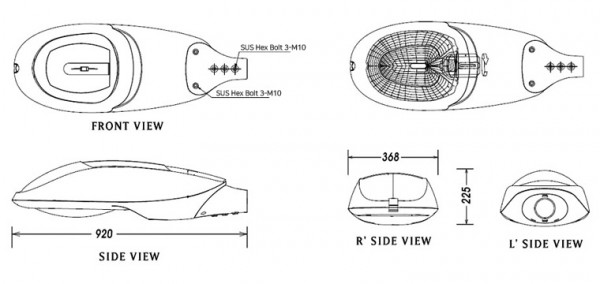

Drawing

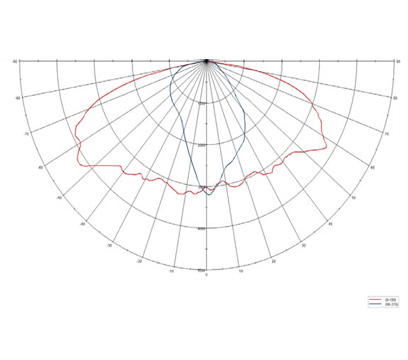

Light distribution chart




Product Specifications

Model CDM150W CDM140W CDM250W
Dimension(LxWxH)(㎜) 920*368*225
weight(Kg) 11
Input Voltage(Vac) 100~240Vac, 50/60㎐
Power Consumption(W) 174 152 270
Power Factor 12,000 30,000 12,000
Luminous Flux(lm) 12,700 or more 16,500 or more 21,500 or more
Luminance Efficiency(lm/W) 85 or more 118 or more 86 or more
CRI(Ra) 90 70 90
Color Temperature(K) 4,200 2,850 5,700
IP Code(IP) IP65 IP65 IP65
