LED street lamp fixture
Content
Certified Products
| Model | G2B No |
|---|---|
| WRLR-01-02 | 22863373 |
| LTW-P-150-01 | 23064843 |
| LTW-P050-01 | 23059109 |

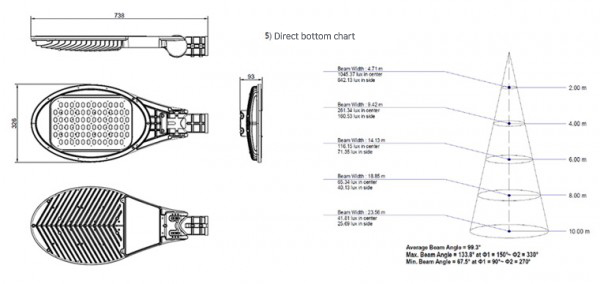

Drawing

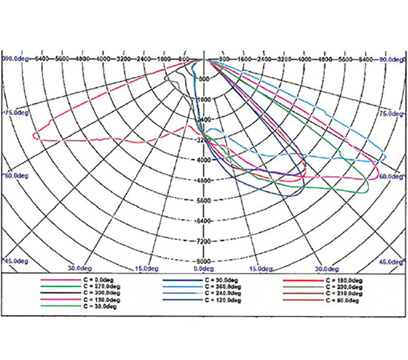

Light distribution chart
Product Specifications
| Model | WRLR-01-01 | WRLW-01-02 | LTW-P-150-01 | LTW-P050-01 |
|---|---|---|---|---|
| Dimension(LxWxH)(㎜) | 596*227*81 | |||
| weight(Kg) | 5.5 | |||
| Input Voltage(Vac) | 220VAC, 60㎐ | |||
| Power Consumption(W) | 120 | 150 | 150 | 50 |
| Power Factor | 0.9 or more | |||
| Luminous Flux(lm) | 11,400 | 14,250 | 16,200 | 5,400 |
| Luminance Efficiency(lm/W) | 95 or more | |||
| CRI(Ra) | 75 or more | |||
| Color Temperature(K) | 5,700 | |||
| IP Code(IP) | IP65 | |||
