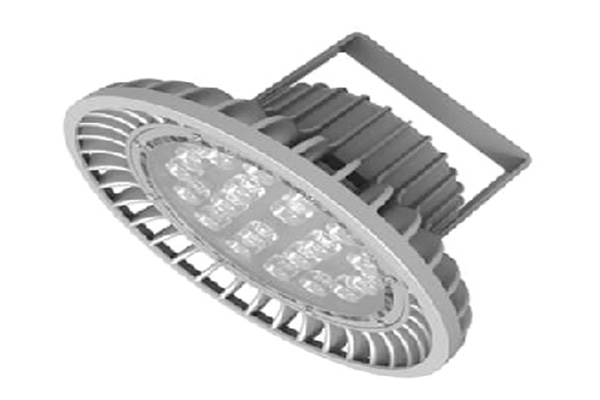

LED Flood lighting fixture
Content
Certified Products
Model |
Power Consumption | G2B No |
|---|---|---|
| ESH-TL-80H | 80W | 23295485 |

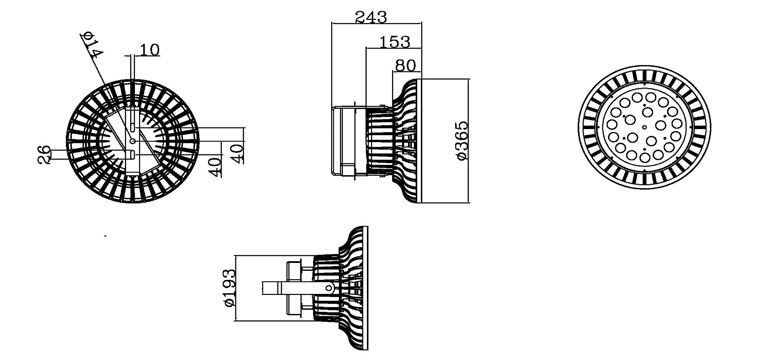

Drawing

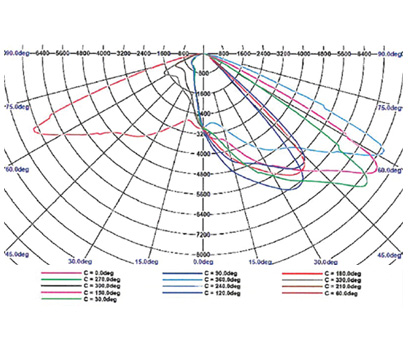

Light distribution chart
Product Specifications
| Attribute Name | Attribute Value | Unit of Measure |
|---|---|---|
| Lamp Power | 150 | W |
| Used Lamp | LED | |
| Kinds | LED Flood lighting fixture | |
| Windshield | Heat-resistant tempered glass | |
| Body Material | Aluminum | lm |
| Luminaire Type | Circle | V |
| Beam | 17,250 | mm |
| Rated voltage | AC220 | mm |
| Dimension(W*L*H) | 365*365*153 | mm |
